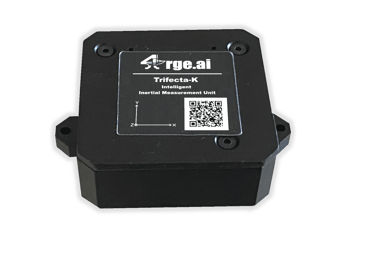

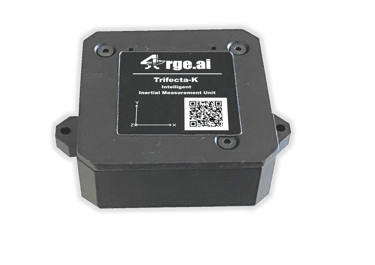

The Trifecta‑K series delivers a unified line of high‑performance, intelligence-defined IMUs designed for real‑world autonomy, robotics, and motion‑intensive systems. All models share the same core advantages:

• Intelligent sensor fusion for accurate, low drift orientation and motion tracking

• Adaptive sensitivity and vibration compensation for clean data in harsh environments

• Automatic adaptive calibration that maintains estimator health over time

• Broad interface support for seamless integration into a wide range of systems



Each variant is tuned for a distinct envelope of size, dynamic range, and application constraints, ensuring that developers can choose the ideal module without sacrificing the intelligence and reliability that define the Trifecta‑K family.

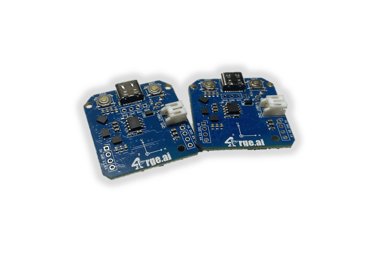

Trifecta-K0: Compact IMU for space constrained uses!

± 480 deg / s
± 8 G

Dynamic Range*

Gyroscope

Accelerometer

Bias Instability

2.9 deg / hr
34 µg

2.8 mdps / √ Hz
70 µg / √ Hz

Noise Density

Key Features:

+ Compact size and OEM form-factor
+ 200 Hz high-performance sensor fusion
+ No drift when stationary
+ Automatic calibration and sensitivity optimization
+ Immune to magnetic interference
+ A broad range of interfaces and platform support!

Excellent Sensor Specifications:

Wide range of output interfaces:

Wired: USB 2.0, UART, SPI, I2C, CAN*
Wireless: Wi-Fi Station/Access Point, BLE

Supports simultaneous multicast output:
USB + (one of UART/SPI/I2C/CAN) + (one of Wi-Fi Station/AP/BLE)!

See the Trifecta-K0 in action:

Evaluation Kits Available:

February-March 2026

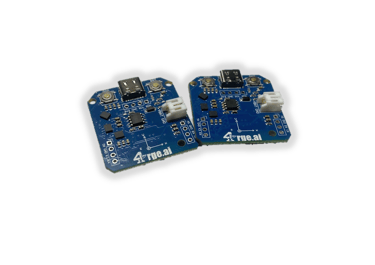

Trifecta-K1: High-performance IMU for versatile applications!

± 480 deg / s
± 8 G

Dynamic Range*

Gyroscope

Accelerometer

Bias Instability

1.5 deg / hr
20 µg

1.8 mdps / √ Hz
42 µg / √ Hz

Noise Density

Key Features:

+ 200 Hz high-performance sensor fusion
+ No drift when stationary
+ Automatic calibration and sensitivity optimization
+ Immune to magnetic interference
+ Adaptive vibration compensation
+ A broad range of interfaces and platform support!

Excellent Sensor Specifications:

Wide range of output interfaces:

Wired: USB 2.0, UART, SPI, I2C, CAN*
Wireless: Wi-Fi Station/Access Point, BLE

Supports simultaneous multicast output:
USB + (one of UART/SPI/I2C/CAN) + (one of Wi-Fi Station/AP/BLE)!

Evaluation Kits Available: February-March 2026

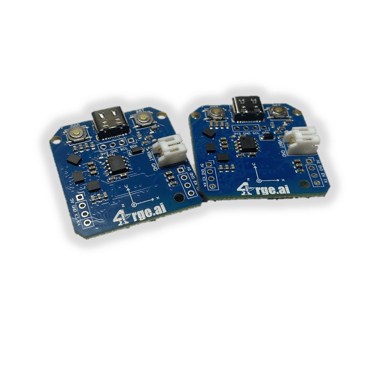

Trifecta-K2: Supercharged performance for demanding roles!

± 480 deg / s
± 8 G

Dynamic Range*

Gyroscope

Accelerometer

Bias Instability

0.55 deg / hr
20 µg

0.6 mdps / √ Hz
42 µg / √ Hz

Noise Density

Key Features:

+ FOG-like performance without the bulk or cost!
+ 200 Hz high-performance sensor fusion
+ No drift when stationary
+ Automatic calibration and sensitivity optimization
+ Immune to magnetic interference
+ A broad range of interfaces and platform support!

Excellent Sensor Specifications:

Wide range of output interfaces:

Wired: USB 2.0, UART, SPI, I2C, CAN*
Wireless: Wi-Fi Station/Access Point, BLE

Supports simultaneous multicast output:
USB + (one of UART/SPI/I2C/CAN) + (one of Wi-Fi Station/AP/BLE)!

Contact us if interested!
